DG-C4+2-16-seat · 48 V · 5 kW

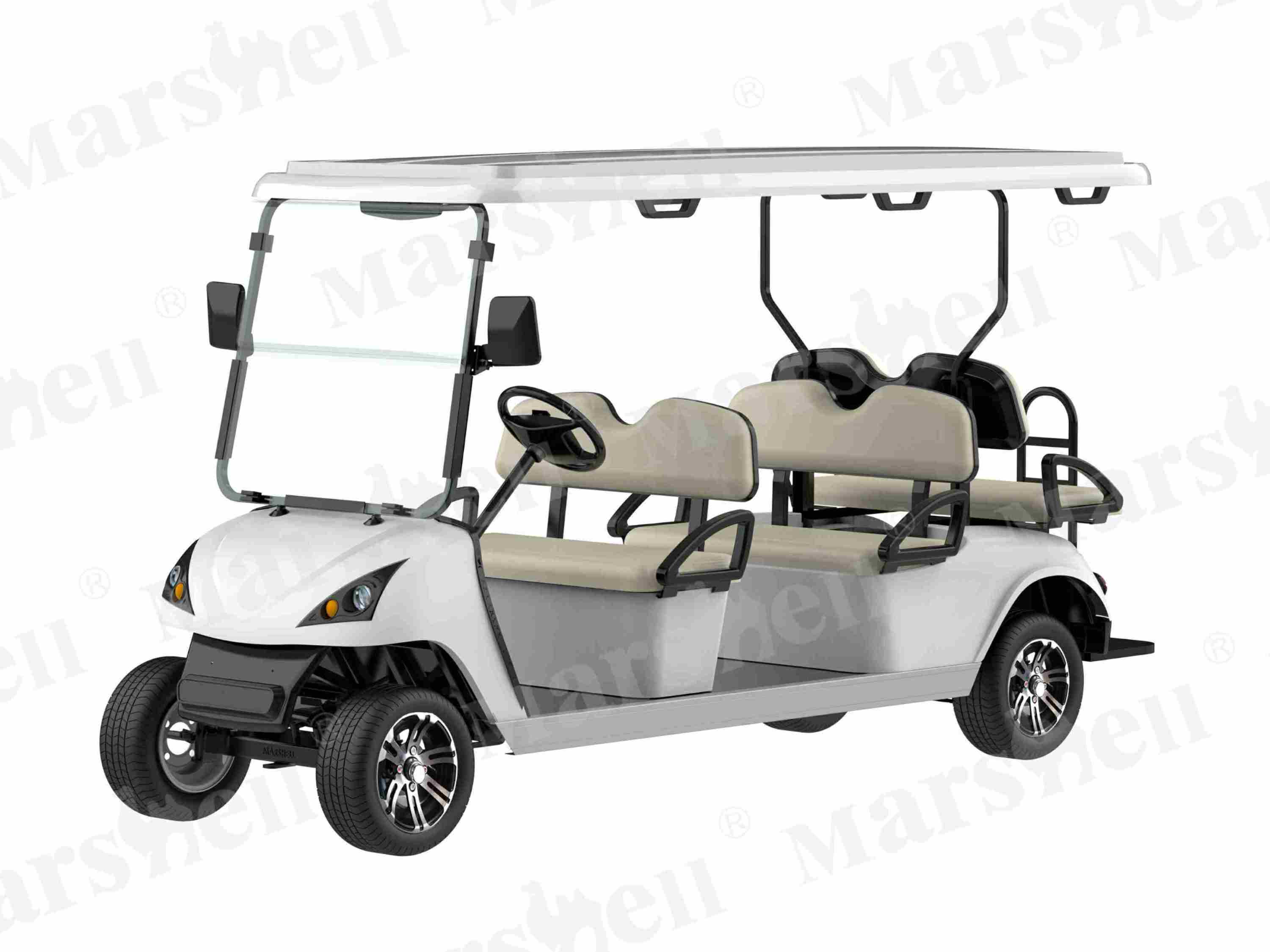

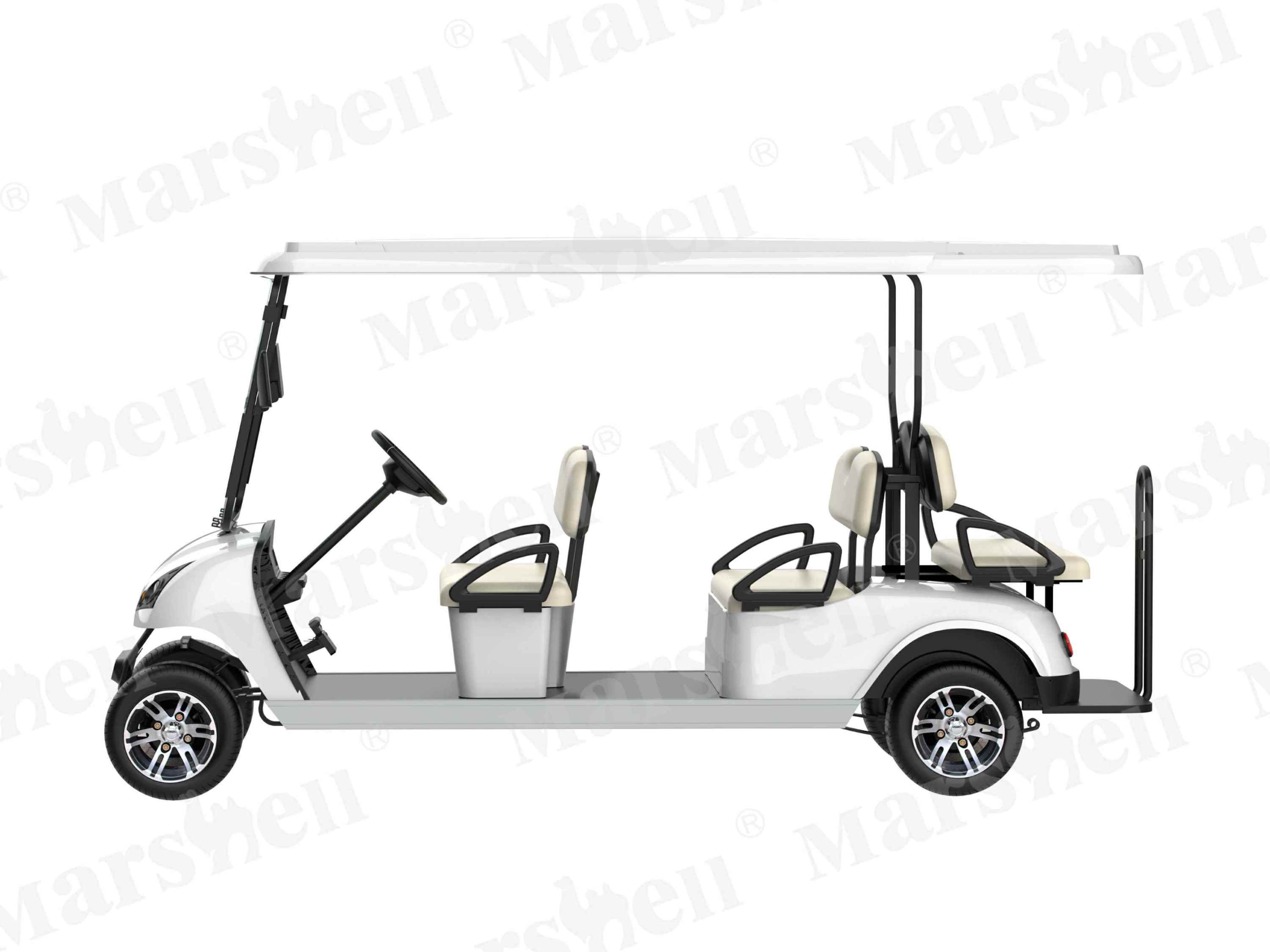

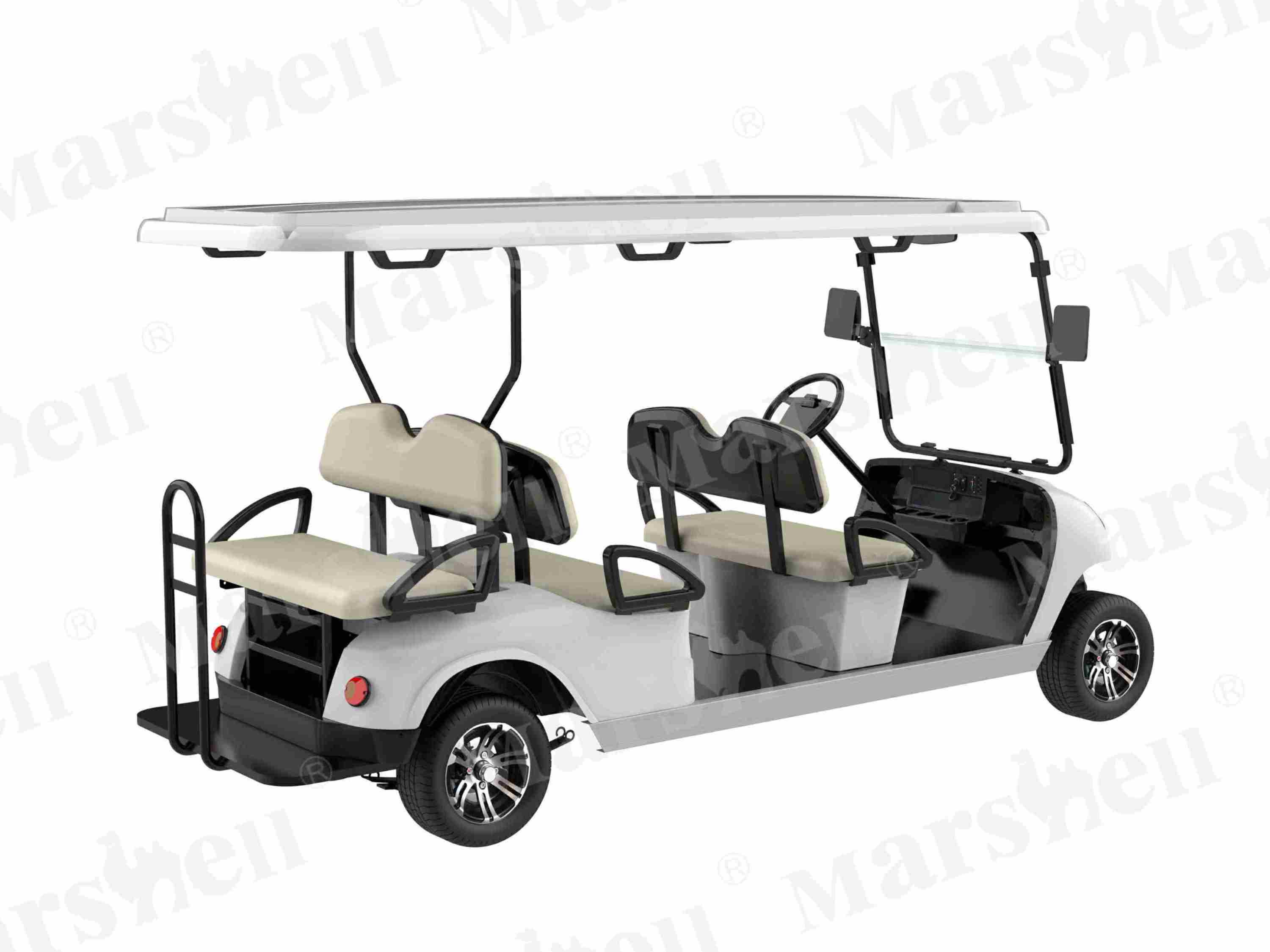

DG-C4+2-1 6-Seat Electric Golf Cart
Six-seat 4+2 carrier with a simple, clean design — dependable 5 kW drive for resort and campus people-moving.
Seats
6
Dimensions
3400 × 1200 × 1900 mm
Curb Weight
640 kg
Max Load
450 kg
Speed
18–24 km/h
Gradeability
15%
Power
48 V · 5 kW
Range
60–120 km (by battery option)
Full Specifications
Overview
Model
DG-C4+2-1
Type
6-seat electric golf cart (4+2 layout)
Seating Capacity
6 persons
Intended Use
Resorts, hotels, golf courses, communities, campuses
Dimensions & Weight
Overall Dimensions (L×W×H)
3400 × 1200 × 1900 mm
Curb Weight
640 kg
Max Load
450 kg
Performance
Max Speed
18–24 km/h
Gradeability
15%
Range
60–120 km depending on battery option
Drivetrain & Battery
System Voltage
48 V
Motor Power
5 kW
Battery
Deep-cycle lead-acid (standard); lithium upgrade available
Charging
Onboard intelligent charger
Chassis & Body
Chassis
Micro-car chassis structure; electrophoretic + baked paint double anti-corrosion
Body Panels
Injection-molded high-strength engineering plastic
Front Suspension
MacPherson independent suspension
Rear Suspension
Trailing-arm suspension
Brakes
Rear mechanical drum brakes + mechanical foot parking brake
Customization
Theme Colors
Custom color schemes available
Branding
LOGO printing and decal customization
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
