DG-C2-52-seat · 48 V · 5 kW

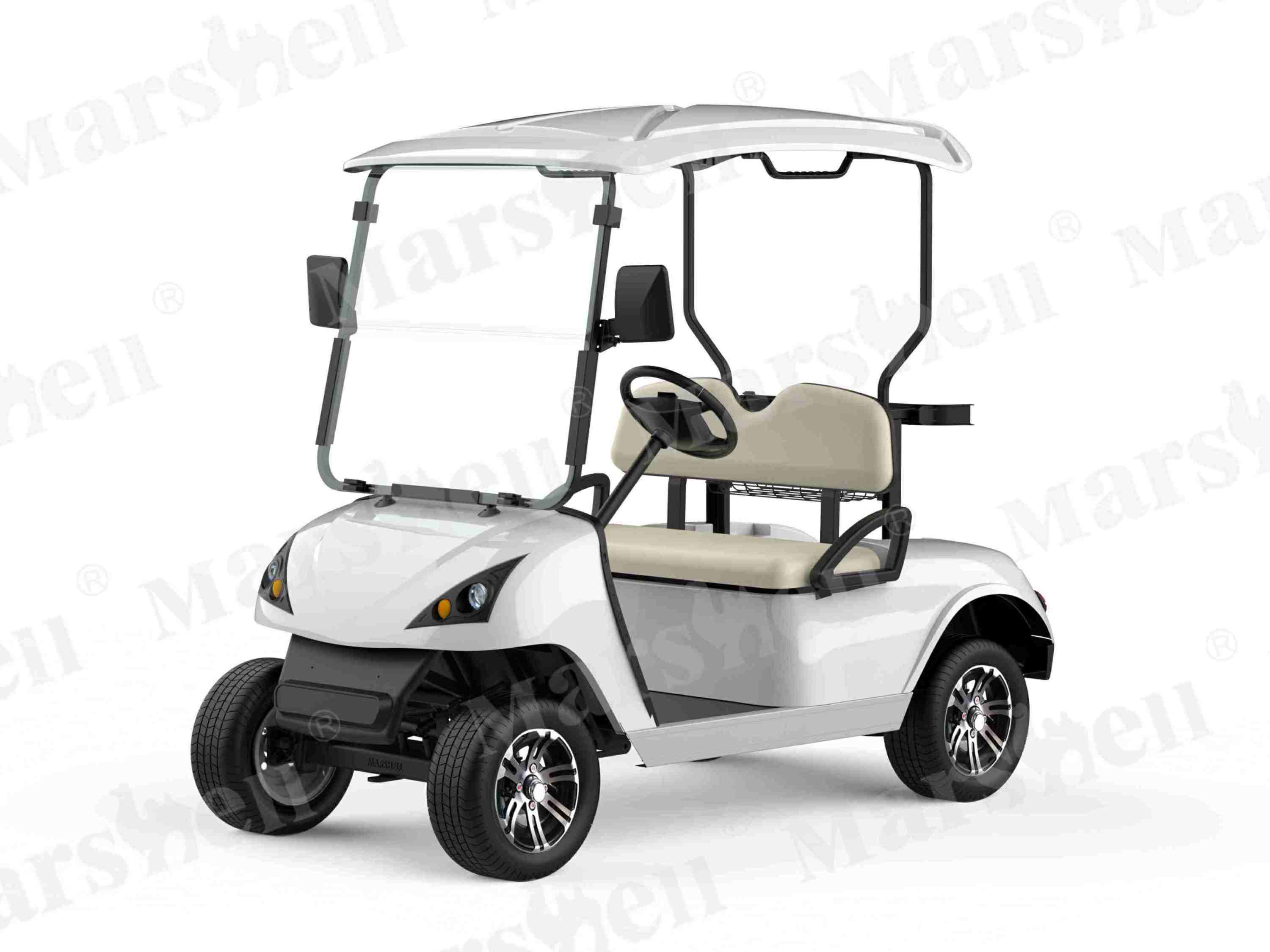

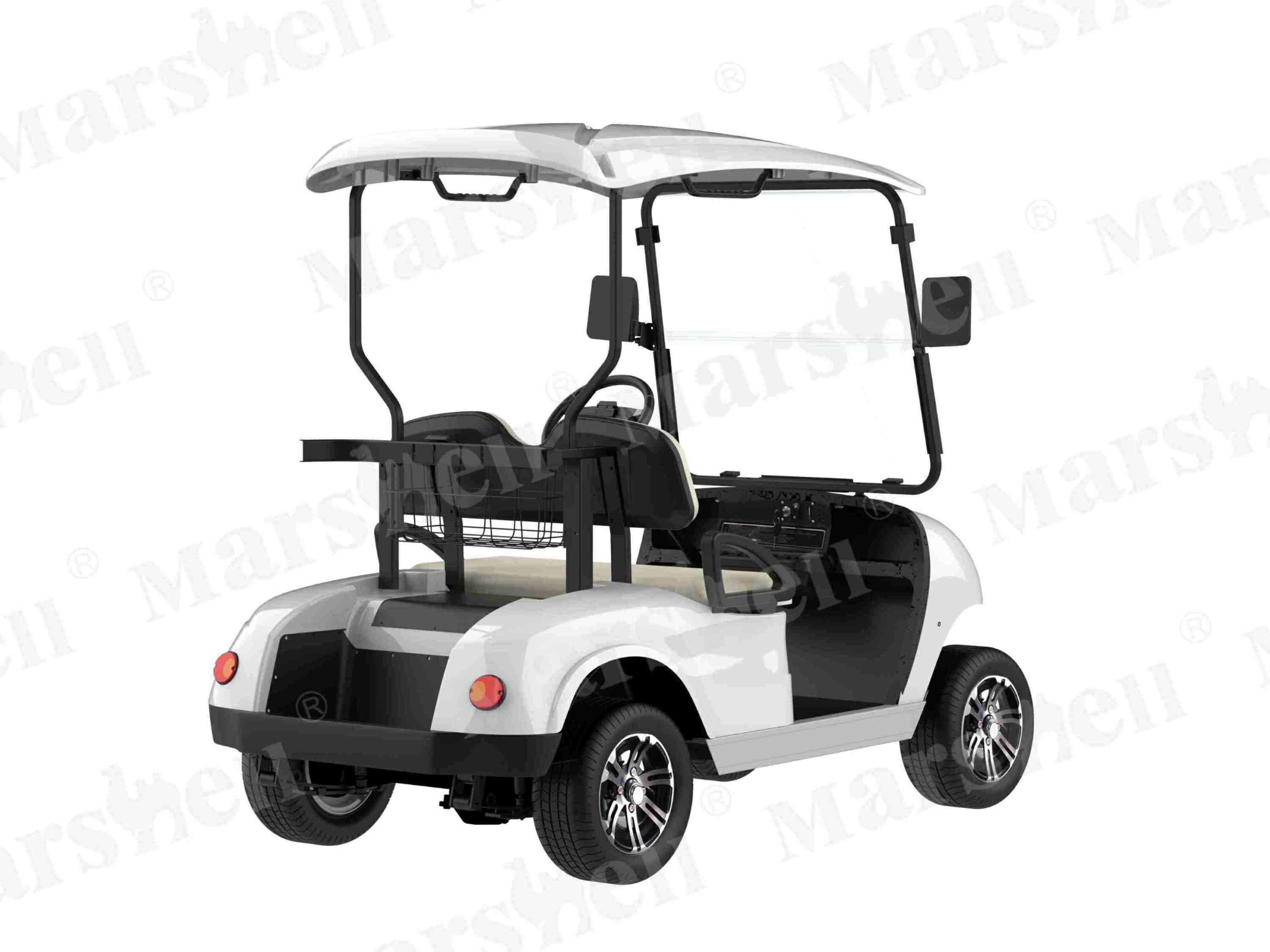

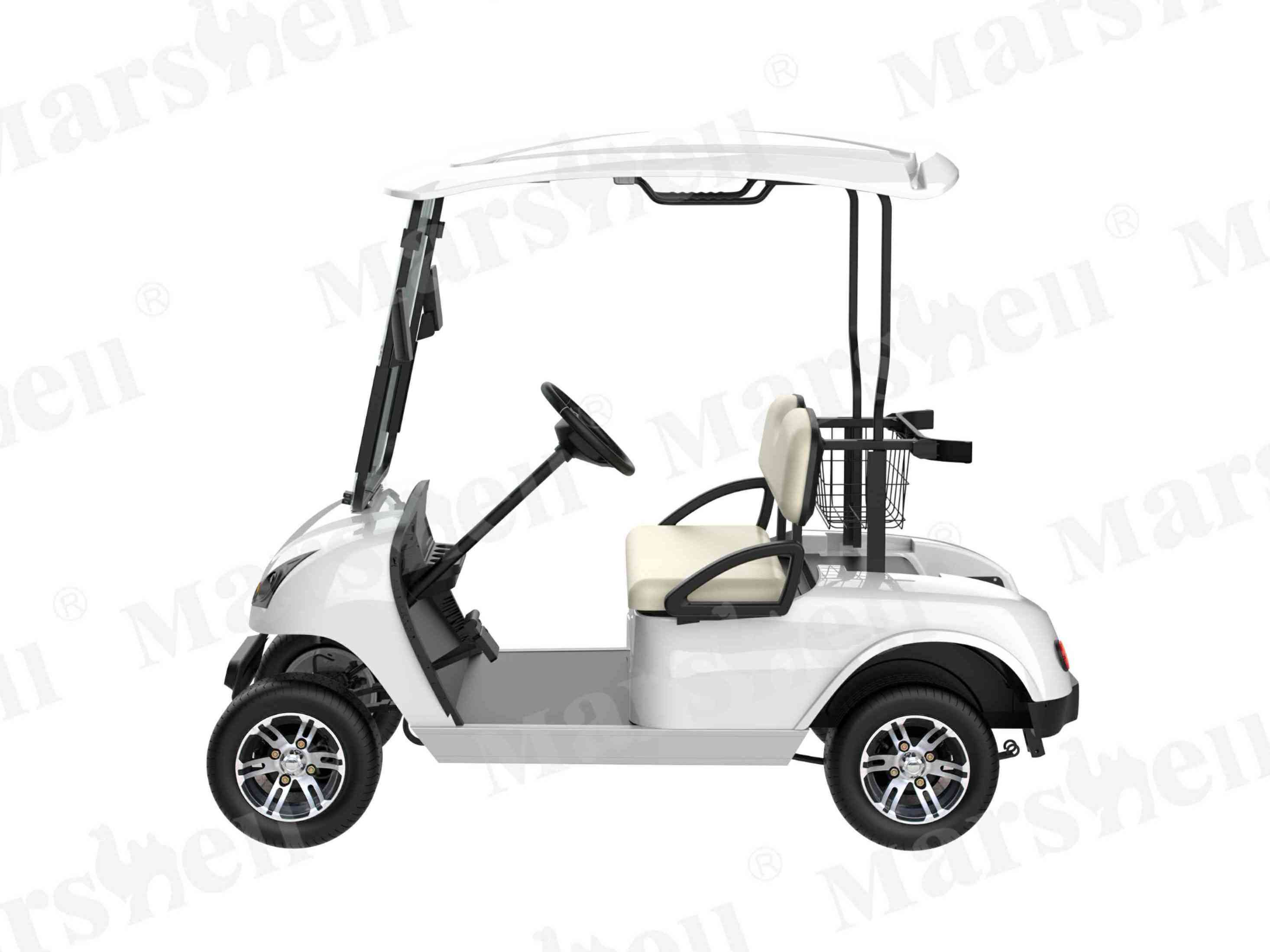

DG-C2-5 2-Seat Electric Golf Cart
The slope specialist — 30% gradeability at full load makes this two-seater a strong choice for hilly courses and estates.
Seats
2
Dimensions
2340 × 1200 × 1860 mm
Curb Weight
490 kg
Speed
18–24 km/h
Gradeability
30% (full load)
Power
48 V · 5 kW
Range
80–100 km (by battery option)

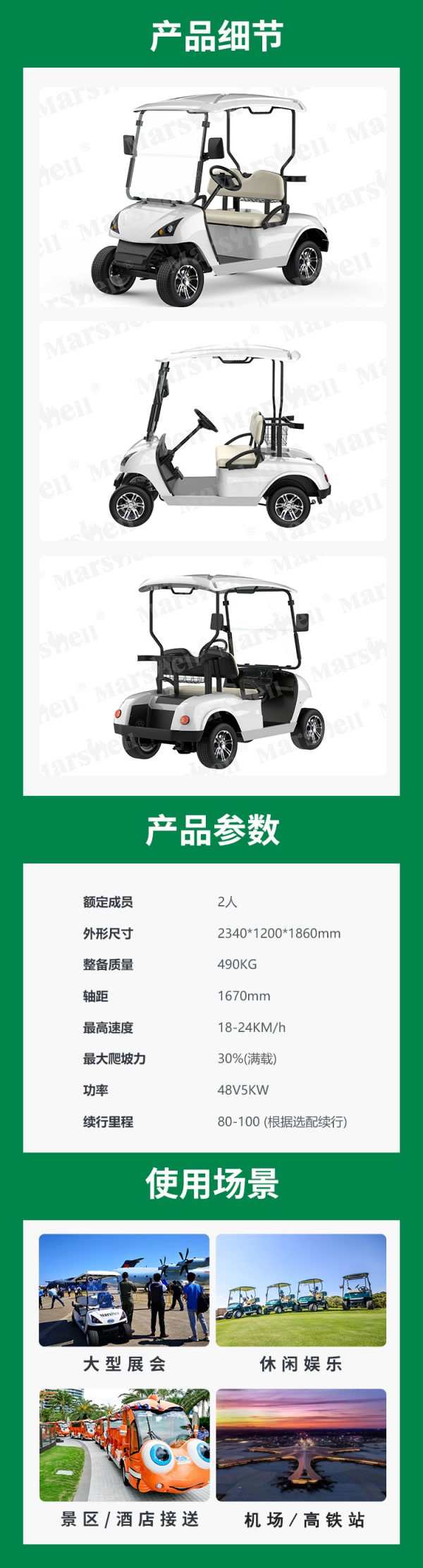

Full Specifications
Overview
Model
DG-C2-5
Type
2-seat electric golf cart
Seating Capacity
2 persons
Intended Use
Golf courses, resorts, communities, campuses, exhibitions
Dimensions & Weight
Overall Dimensions (L×W×H)
2340 × 1200 × 1860 mm
Wheelbase
1670 mm
Curb Weight
490 kg
Performance
Max Speed
18–24 km/h
Gradeability
30% at full load
Range
80–100 km depending on battery option
Drivetrain & Battery
System Voltage
48 V
Motor Power
5 kW
Battery
Deep-cycle lead-acid (standard); lithium upgrade available
Charging
Onboard intelligent charger
Chassis & Body
Chassis
Micro-car chassis structure; electrophoretic + baked paint double anti-corrosion
Body Panels
Injection-molded high-strength engineering plastic
Front Suspension
MacPherson independent suspension
Rear Suspension
Trailing-arm suspension
Brakes
Rear mechanical drum brakes + mechanical foot parking brake
Customization
Theme Colors
Custom color schemes available
Branding
LOGO printing and decal customization
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
